WSLD-808-001-2-PD (100um)
    ●  Part Number：WSLD-808-001-2-PD（100um）
    ●  Wavelength：808nm
    ●  Output Power：1W
    ●  Package：TO5 (9mm)
    ●  Built-in PD






  • Specification

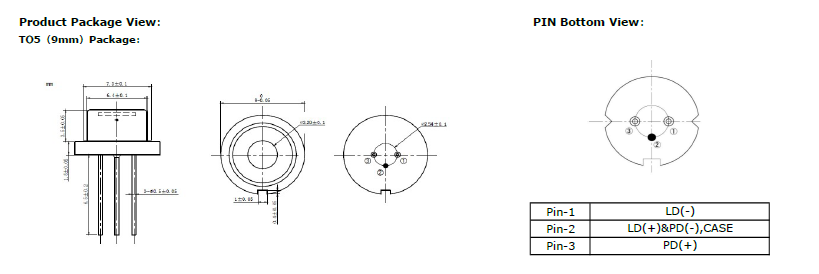

  • Drawing
  • Datasheet
  • Ask For Quotation


  • Part Number
    WSLD-808-001-2-PD (100um)
    PARAMETER SYMBOL VALUE UNIT OF MEASURE
    Reverse Voltage Vr 2.0 V
    Operating Temperature Top 0~+40 °C
    Storage Temperature Tstg -40 ~ +85 °C
    Lead Soldering Temperature (10 sec.) Tis 260 °C
    Typical Specification (@25C°)
    Min.
    Typical Value
    Max.
    Optical Parameters


    Center Wavelength

    808nm+/-10nm

    Output Power
    		 ---- 1.0W ----
    Spectral Width(FWHM) ---- 2.0nm ----
    Wavelength Temp. Coefficient 0.3nm/°C
    Laser Type FP
    Beam Type Multimode
    Emitter Size 100umx1um
    Beam Divergence (FWHM) ---- 38°⊥x10°∥ 40°⊥x12°∥
    Slope Efficiency ---- 1.1W/A ----
    Electrical Parameters Threshold Current ---- 0.2A ----
    Operating Current ---- 1.2V ----
    Operating Voltage ---- 2.2V ----
    Photodiode Parameters Photodiode Built-in
    PD Current ---- 0.1mA ----
    PD Reverse Voltage (Max.) 30V
    Other Parameters Package TO5（9mm)
    Recommended
    Operating Temp.    		 25°C

    Other

    		 ----
