WSLD-808-300m-1-PD
808nm 300mW Laser Diodes with Photodiode | Infrared Laser Diode
    ●  Part Number：WSLD-808-300m-1-PD
    ●  Wavelength：808nm
    ●  Output Power：300mW
    ●  Package：TO18 (5.6mm)
    ●  Built-in PD







  • Specification

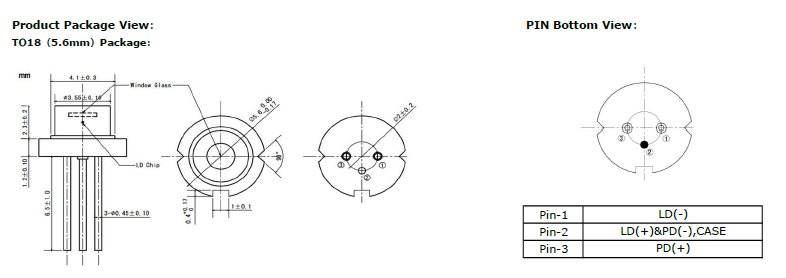

  • Drawing
  • Datasheet
  • Ask For Quotation


  • Part Number
    WSLD-808-300m-1-PD
    PARAMETER SYMBOL VALUE UNIT OF MEASURE
    Reverse Voltage Vr 2.0 V
    Operating Temperature Top -10~+50 °C
    Storage Temperature Tstg -40 ~ +85 °C
    Lead Soldering Temperature (10 sec.) Tis 260 °C
    Typical Specification (@25C°)
    Min.
    Typical Value
    Max.
    Optical Parameters


    Center Wavelength

    808nm+/-10nm

    Output Power
    		 ---- 300mW ----
    Spectral Width(FWHM) ---- 2.0nm ----
    Wavelength Temp. Coefficient 0.3nm/°C
    Laser Type FP
    Beam Type Multimode
    Emitter Size 50um x 1um
    Beam Divergence (FWHM) ---- 36°⊥x12°∥ ----
    Slope Efficiency ---- 1.0mW/mA ----
    Electrical Parameters Threshold Current ---- 50mA 80mA
    Operating Current ---- 350mA 380mA
    Operating Voltage ---- 2.4V 2.8V
    Photodiode Parameters Photodiode Built-in
    PD Current ---- 0.1mA ----
    PD Reverse Voltage (Max.) 30V
    Other Parameters Package TO18 （5.6mm）
    Recommended
    Operating Temp.    		 25°C

    Other

    		 ----
