WSLD-785-005-E
785nm Laser Diode| High Power LD| 5W Power| E-mount Package
    ●  Part Number：WSLD-785-005-E
    ●  Wavelength：785nm
    ●  Output Power：5W
    ●  Package：E-mount
    ●  Without PD & FAC







  • Specification

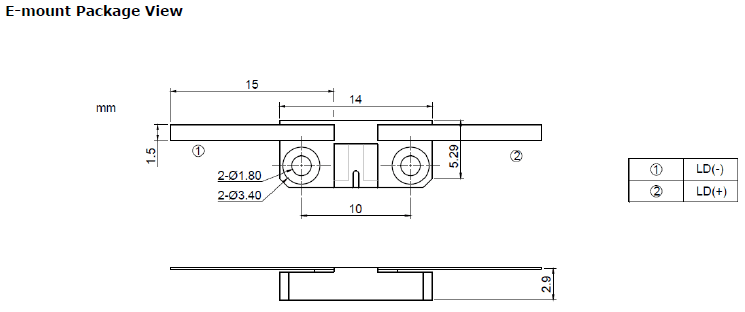

  • Drawing
  • Datasheet
  • Ask For Quotation


  • Specifications

           WSLD-785-005-E



    Min

    Type

    Max

    Center Wavelength@25℃

    +/-5nm

    785nm

    +/-10nm

    Spectral Width(FWHM)



    		 2.0nm

    Output Power



    5W



    Emitter



    		 200x1μm

    Beam Divergence (FWHM)



    35°┴ x 8°//



    Monitor Current

    ----

    		   ----
    Temp. Coefficient of Wavelength   0.3nm/°C
    Recommended Operating Temperature   25°C

    PD Reverse Voltage

    ----



    PD Forward Current

    ----



    Slope Efficiency

    0.9mW/mA

    1.0mW/mA

    1.2mW/mA

    Threshold Current (Typ.)

    ----

    0.7A

    1.0A

    Operating Current (Typ.)

    ----

    5.0A

    5.5A

    Operating Voltage

    ----

    1.9V

    2.3V

    Package Style

    E-mount
