WSLD-785-005-C
785nm Laser Diode| High Power LD| 5W Power| C-mount Package
    ●  Part Number：WSLD-785-005-C
    ●  Wavelength：785nm
    ●  Output Power：5W
    ●  Package：C-mount
    ●  Without PD & FAC







  • Specification

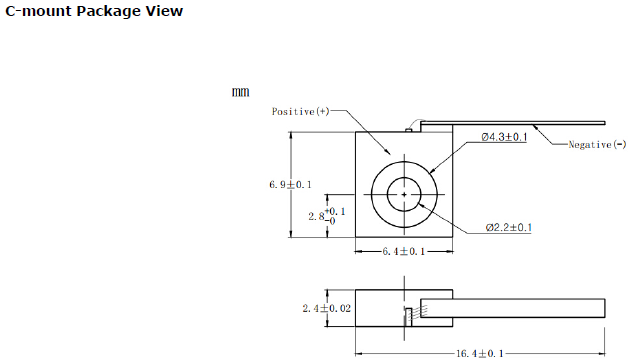

  • Drawing
  • Datasheet
  • Ask For Quotation


  • Specifications

           WSLD-785-005-C



    Min

    Type

    Max

    Center Wavelength@25℃

    +/-5nm

    785nm

    +/-10nm

    Spectral Width(FWHM)



    		 2.0nm

    Output Power



    5W



    Emitter



    		 200x1μm
    Temp. Coefficient of Wavelength   0.3nm/°C

    Beam Divergence (FWHM)



    35°┴ x 8°//



    Recommended Operation Temp.

    ----

    		 25°C ----

    PD Reverse Voltage

    ----



    PD Forward Current

    ----



    Slope Efficiency



    1.2W/mA



    Threshold Current (Typ.)

    ----

    0.7A

    1.0A

    Operating Current (Typ.)

    ----

    5.0A

    5.5A

    Operating Voltage

    ----

    1.9V

    2.3V

    Package Style

    C-mount
