WSLD-520-080m-1(3.8mm)
520nm SM LD| 80mW Power| 3.8mm Package Green diode laser
    ●  Part Number：WSLD-520-080m-1
    ●  Wavelength：520nm
    ●  Output Power：80mW
    ●  Package：TO38 (3.8mm)
    ●  Without PD






  • Specification

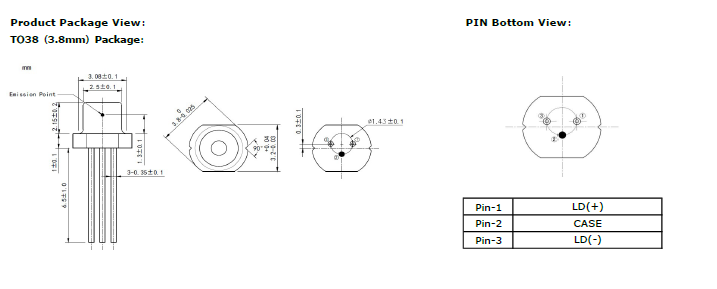

  • Drawing
  • Datasheet
  • Ask For Quotation


  • Part Number
    WSLD-520-080m-1(3.8mm)
    PARAMETER SYMBOL VALUE UNIT OF MEASURE
    Reverse Voltage Vr 2.0 V
    Operating Temperature Top -20~+60 °C
    Storage Temperature Tstg -40 ~ +85 °C
    Lead Soldering Temperature (10 sec.) Tis 260 °C
    Typical Specification (@25C°)
    Min.
    Typical Value
    Max.
    Optical Specifications


    Center Wavelength
    520nm+/-10nm
    Output Power
    		 ---- 80mW ----
    Spectral Width(FWHM) ---- 2.0nm ----
    Wavelength Temp. Coefficient 0.05nm/°C
    Laser Type FP
    Beam Type Single Mode
    Beam Divergence(FWHM) 15°⊥x5°∥ 21°⊥x7°∥ 26°⊥x10°∥
    Slope Efficiency ---- 0.5mW/mA ----
    Electrical Specifications Threshold Current ---- 50mA 80mA
    Operating Current ---- 210mA 240mA
    Operating Voltage ---- 7.5V 8.0V
    Photodiode Specifications Photodiode Without
    PD Current ---- ---- ----
    PD Reverse Voltage (Max.) ----
    Other Specifications Package Style TO38（3.8mm）
    Recommended
    Operating Temp.    		 25°C
