WSLD-520-080m-1-PD
515nm～520nm 80mW Laser Diode| Single mode Green LD | With Photodiode
    ●  Part Number：WSLD-520-080m-1-PD
    ●  Wavelength：520nm
    ●  Output Power：80mW
    ●  Package：TO18 (5.6mm)
    ●  Built-in PD






  • Specification

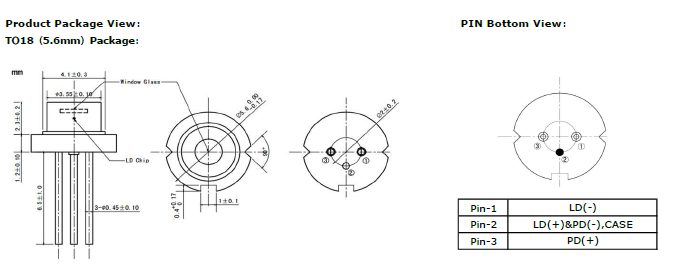

  • Drawing
  • Datasheet
  • Ask For Quotation


  • Part Number
    WSLD-520-080m-1-PD
    PARAMETER SYMBOL VALUE UNIT OF MEASURE
    Reverse Voltage Vr 2.0 V
    Operating Temperature Top -20~+60 °C
    Storage Temperature Tstg -40 ~ +85 °C
    Lead Soldering Temperature (10 sec.) Tis 260 °C
    Typical Specification (@25C°)
    Min.
    Typical Value
    Max.
    Optical Specifications


    Center Wavelength

    520nm+/-10nm

    Output Power
    		 ---- 80mW ----
    Spectral Width(FWHM) ---- 2.0nm ----
    Wavelength Temp. Coefficient 0.05nm/°C
    Laser Type FP
    Beam Type Single Mode
    Beam Divergence(FWHM) 15°⊥x5°∥ 21°⊥x8°∥ 25°⊥x12°∥
    Slope Efficiency ---- 0.5mW/mA ----
    Electrical Specifications Threshold Current ---- 50mA 80mA
    Operating Current ---- 210mA 240mA
    Operating Voltage ---- 7.5V 8.0V
    Photodiode Specifications Photodiode Built-in
    PD Current ---- 0.1mA ----
    PD Reverse Voltage (Max.) 30V
    Other Specifications Package Style TO18 （5.6mm）
    Recommended
    Operating Temp.    		 25°C
