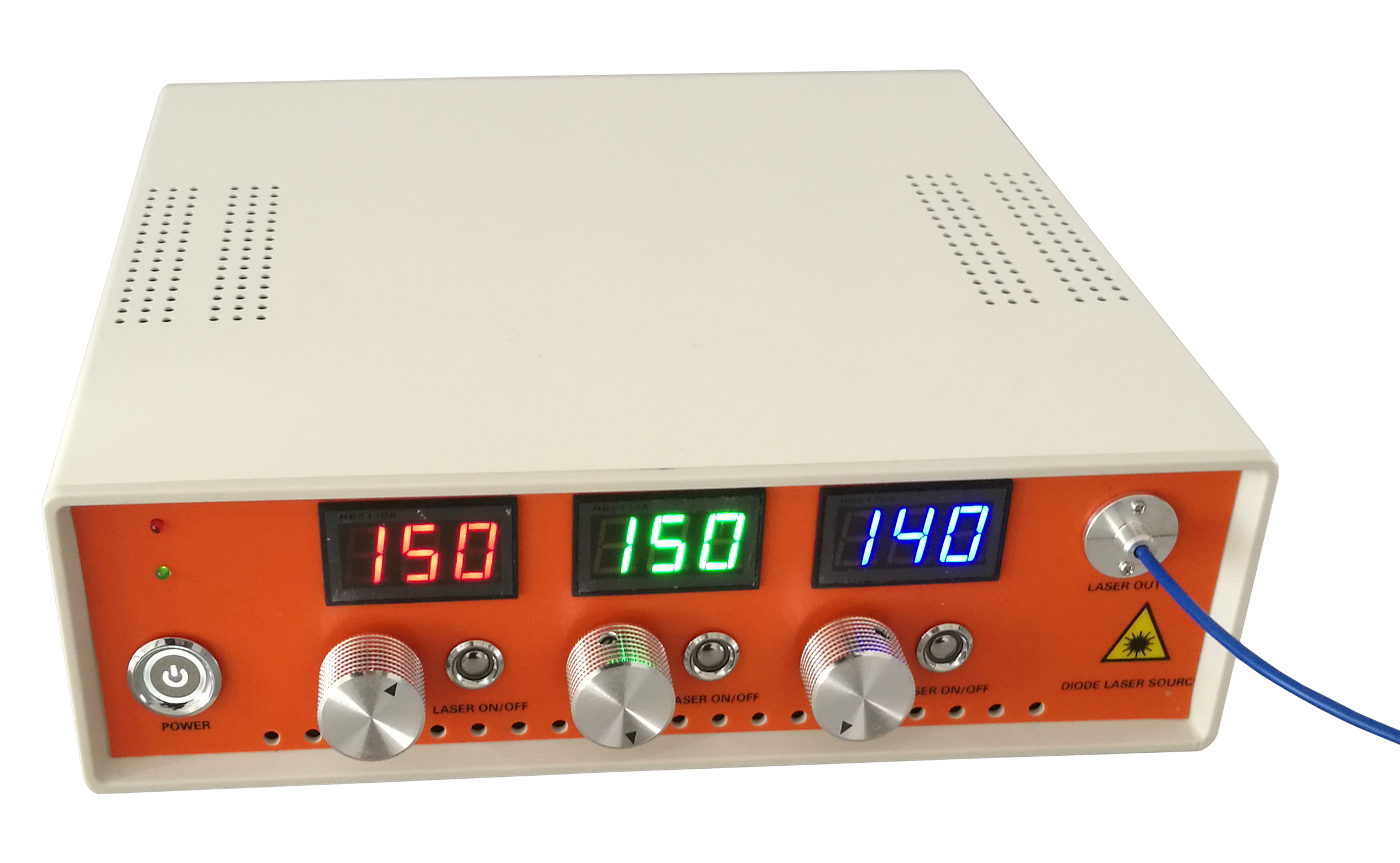

- <Triplex (RGB) Fiber Coupled White Light Laser System>
PRODUCT FEATURE:
638nm+520nm+445nm(RGB) Laser to Synthesize White Light
SMF | PMF | MMF Fiber Type Optional
3um | 9um | 50um | 105um Fiber Core optional.
Output Power upto 3W (ex-fiber)
Each Wavelength Controlled Independently
90V~240VAC Input
TTL/Analog Modulation Optional
Turnkey Laser System
| Part Number | Wavelength | Output Power | Package | PD | RoHS | DownLoad |
| Triplex-WSLS-445/010m-520/010m-635/010m-4 | 638nm+520nm+445nm | 10mW+10mW+10mW | Laser System | √ |  |
|
| Triplex-WSLS-445/015m-520/015m-635/015m-4 | 638nm+520nm+445nm | 15mW+15mW+15mW | Laser System | √ | |
|
| Triplex-WSLS-445/020m-520/020m-635/020m-4 | 638nm+520nm+445nm | 20mW+20mW+20mW | Laser System | √ | |
|
| Triplex-WSLS-445/030m-520/030m-635/030m-M | 638nm+520nm+445nm | 30mW+30mW+30mW | Laser System | √ | |
|
| Triplex-WSLS-445/050m-520/050m-635/050m-M | 638nm+520nm+445nm | 50mW+50mW+50mW | Laser System | √ | |
|
| Triplex-WSLS-445/080m-520/080m-635/080m-M | 638nm+520nm+445nm | 80mW+80mW+80mW | Laser System | √ | |
|
| Triplex-WSLS-445/030m-520/030m-635/030m-9 | 638nm+520nm+445nm | 30mW+30mW+30mW | Laser System | √ | |
|
| Triplex-WSLS-445/050m-520/050m-635/050m-9 | 638nm+520nm+445nm | 50mW+50mW+50mW | Laser System | √ | |
