405nm single mode fiber coupled laser diode

We offer the 405nm Single Mode Fiber Coupled Laser Diode.

2mW,10mw, 20mw, 30mw, 50mw, 100mw Output power.

Coaxial Package, High stability, Long lifetime.

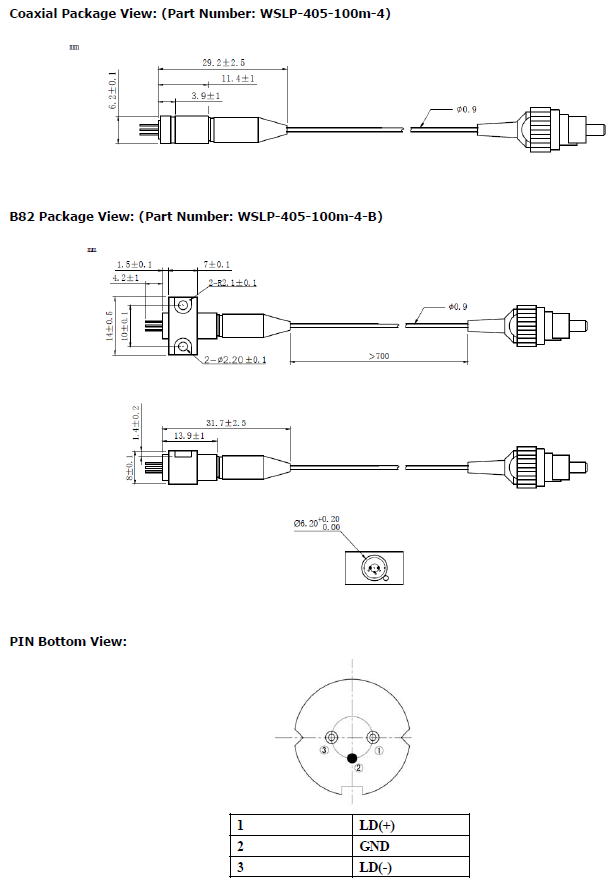

Part Number	Wavelength	Output Power	Package	Fiber Core	Fiber Type	TEC	RoHS	DownLoad
WSLP-405-001m-4-PD	405nm	1mW	Coaxial	3um	SMF	×	√
WSLP-405-015m-4	405nm	15mW	Coaxial	3um	SMF	×	√
WSLP-405-015m-PM	405nm	15mW	Coaxial	3um	PMF	×	√
WSLP-405-030m-4	405nm	30mW	Coaxial	3um	SMF	×	√
WSLP-405-030m-PM	405nm	30mW	Coaxial	3um	PMF	×	√
WSLP-405-050m-4	405nm	50mW	Coaxial	3um	SMF	×	√
WSLP-405-050m-10	405nm	50mW	Coaxial	10um	SMF	×	√
WSLP-405-050m-PM	405nm	50mW	Coaxial	3um	PMF	×	√
WSLP-405-080m-4	405nm	80mW	Coaxial	3um	SMF	×	√
WSLP-405-080m-PM	405nm	80mW	Coaxial	3um	PMF	×	√
WSLP-405-100m-4	405nm	100mW	Coaxial	3um	SMF	×	√
