WSLD-980-200m-1-PD
980nm 200mW Multi-mode Laser Diodes with Photodiode
    ●  Part Number：WSLD-980-200m-1-PD
    ●  Wavelength：976nm
    ●  Output Power：200mW
    ●  Package：TO18 (5.6mm)
    ●  Built-in PD







  • Specification

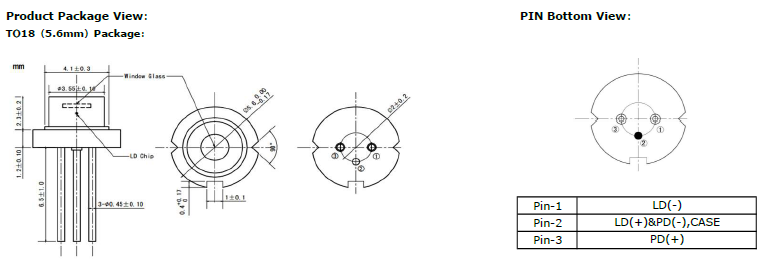

  • Drawing
  • Datasheet
  • Ask For Quotation


  • Part Number
    WSLD-980-200m-1-PD
    PARAMETER SYMBOL VALUE UNIT OF MEASURE
    Reverse Voltage Vr 2.0 V
    Operating Temperature Top -10~+40 °C
    Storage Temperature Tstg -40~+85 °C
    Lead Soldering Temperature (10 sec.) Tis 260 °C
    Typical Specification (@25C°)
    Min.
    Typical Value
    Max.
    Optical Parameters


    Center Wavelength

    976nm+/-15nm

    Output Power
    		 ---- 200mW ----
    Spectral Width(FWHM) ---- 3.0nm ----
    Wavelength Temp. Coefficient 0.35nm/°C
    Laser Type FP
    Beam Type Multimode
    Emitter Size 35um x 1um
    Beam Divergence (FWHM) ---- 30°⊥x8°∥ ----
    Slope Efficiency ---- 0.7mW/mA ----
    Electrical Parameters Threshold Current ---- 60mA 85mA
    Operating Current ---- 350mA 380mA
    Operating Voltage ---- 1.6V 2.2V
    Photodiode Parameters Photodiode Built-in
    PD Current ---- 0.1mA ----
    PD Reverse Voltage (Max.) 30V
    Other Parameters Package TO18 （5.6mm）
    Recommended
    Operating Temp.    		 25°C
