WSLD-940-015-H
940nm 15W Laser Diode with H-mount Package | Window Package LD | FAC Optional
    ●  Part Number：WSLD-940-015-H
    ●  Wavelength：940nm
    ●  Output Power：15W
    ●  Package：H-mount
    ●  Without PD & FAC







  • Specification

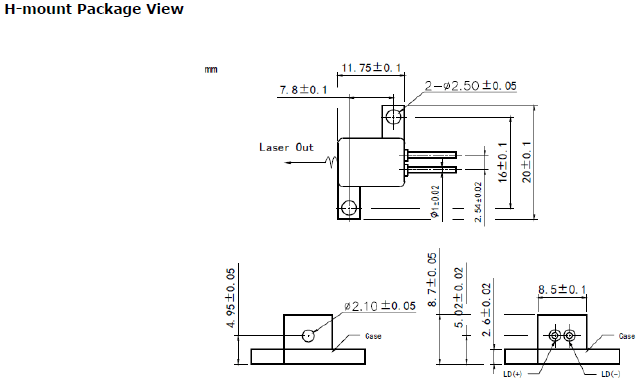

  • Drawing
  • Datasheet
  • Ask For Quotation


  • Part Number
    WSLD-940-015-H
    PARAMETER SYMBOL VALUE UNIT OF MEASURE
    Reverse Voltage Vr 2.0 V
    Operating Temperature Top +10~+30 °C
    Storage Temperature Tstg -20~+80 °C
    Lead Soldering Temperature (10 sec.) Tis 260 °C
    Typical Specification (@25C°)
    Min.
    Typical Value
    Max.
    Optical Parameters


    Center Wavelength

    940nm+/-10nm

    Output Power
    		 ---- 15W ----
    Spectral Width(FWHM) ---- 4.0nm ----
    Wavelength Temp. Coefficient 0.3nm/°C
    Laser Type FP
    Beam Type Multimode
    Emitter Size 200um x 1um
    Beam Divergence (FWHM) ---- 35°⊥x8°∥ ----
    Slope Efficiency ---- 1.1W/A ----
    Electrical Parameters Threshold Current ---- 1.3A 200mA
    Operating Current ---- 15.0A 360mA
    Operating Voltage ---- 1.9V 5.5V
    Photodiode Parameters Photodiode Without
    PD Current ---- ---- ----
    PD Reverse Voltage (Max.) ----
    Other Parameters Package H-mount
    Recommended
    Operating Temp.    		 25°C

    Other

    		 ----
