WSLD-850-300m-1-PD
850nm～860nm Multi-mode LD | 300mW Output Power TO18 5.6mm Package
    ●  Part Number：WSLD-850-300m-1-PD
    ●  Wavelength：850nm
    ●  Output Power：300mW
    ●  Package：TO18 (5.6mm)
    ●  Built-in PD







  • Specification

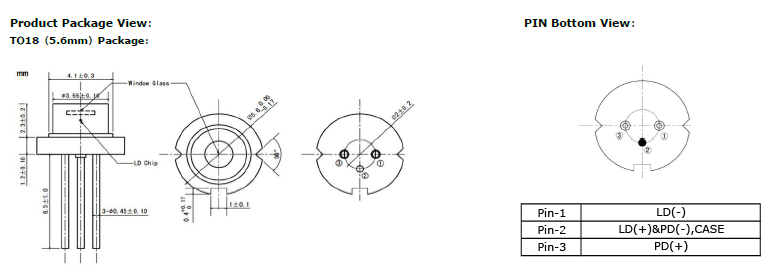

  • Drawing
  • Datasheet
  • Ask For Quotation


  • Part Number
    WSLD-850-300m-1-PD
    PARAMETER SYMBOL VALUE UNIT OF MEASURE
    Reverse Voltage Vr 2.0 V
    Operating Temperature Top -10~+50 °C
    Storage Temperature Tstg -40 ~ +85 °C
    Lead Soldering Temperature (10 sec.) Tis 260 °C
    Typical Specification (@25C°)
    Min.
    Typical Value
    Max.
    Optical Parameters


    Center Wavelength

    850nm+/-10nm

    Output Power
    		 ---- 300mW ----
    Spectral Width(FWHM) ---- 2.0nm ----
    Wavelength Temp. Coefficient 0.3nm/°C
    Laser Type FP
    Beam Type Multimode
    Emitter Size 35um x 1um
    Beam Divergence (FWHM) ---- 18°⊥x12°∥ 24°⊥x17°∥
    Slope Efficiency ---- 0.95mW/mA ----
    Electrical Parameters Threshold Current ---- 120mA 150mA
    Operating Current ---- 440mA 470mA
    Operating Voltage ---- 1.9V 2.5V
    Photodiode Parameters Photodiode Built-in
    PD Current ---- 0.2mA ----
    PD Reverse Voltage (Max.) 30V
    Other Parameters Package TO18 （5.6mm）
    Recommended
    Operating Temp.    		 25°C

    Other

    		 ----
