WSLD-830-002-2
830nm～840nm 2W Laser Diodes | TO5 9mm Package| Square Beam Optional
    ●  Part Number：WSLD-830-002-2
    ●  Wavelength：830nm
    ●  Output Power：2W
    ●  Package：TO5
    ●  Without PD & FAC







  • Specification

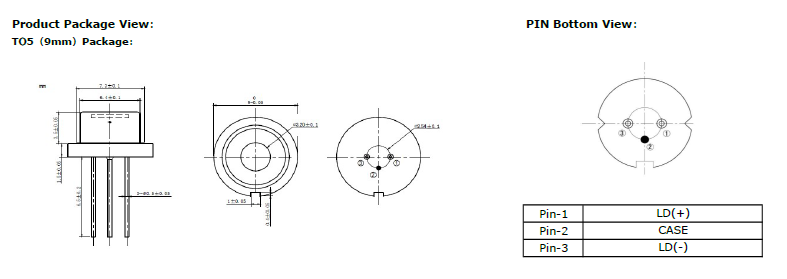

  • Drawing
  • Datasheet
  • Ask For Quotation


  • Part Number
    WSLD-830-002-2
    PARAMETER SYMBOL VALUE UNIT OF MEASURE
    Reverse Voltage Vr 2.0 V
    Operating Temperature Top 0~+40 °C
    Storage Temperature Tstg -40 ~ +85 °C
    Lead Soldering Temperature (10 sec.) Tis 260 °C
    Typical Specification (@25C°)
    Min.
    Typical Value
    Max.
    Optical Parameters


    Center Wavelength

    830nm+/-10nm

    Output Power
    		 ---- 2.0W ----
    Spectral Width(FWHM) ---- 2.0nm ----
    Wavelength Temp. Coefficient 0.3nm/°C
    Laser Type FP
    Beam Type Multimode
    Emitter Size 150um x 1um
    Beam Divergence (FWHM) ---- 38°⊥x10°∥ 40°⊥x12°∥
    Slope Efficiency ---- 1.0W/A ----
    Electrical Parameters Threshold Current ---- 0.4A ----
    Operating Current ---- 2.6A ----
    Operating Voltage ---- 2.5V ----
    Photodiode Parameters Photodiode Without
    PD Current ---- ---- ----
    PD Reverse Voltage (Max.) ----
    Other Parameters Package TO5（9mm)
    Recommended
    Operating Temp.    		 25°C

    Other

    		 ----
