WSLD-808-005-3
808nm 5W High Power LD | Hermetic Package | FAC Lens Optional
    ●  Part Number：WSLD-808-005-3
    ●  Wavelength：808nm
    ●  Output Power：5W
    ●  Package：TO3
    ●  Without PD & FAC







  • Specification

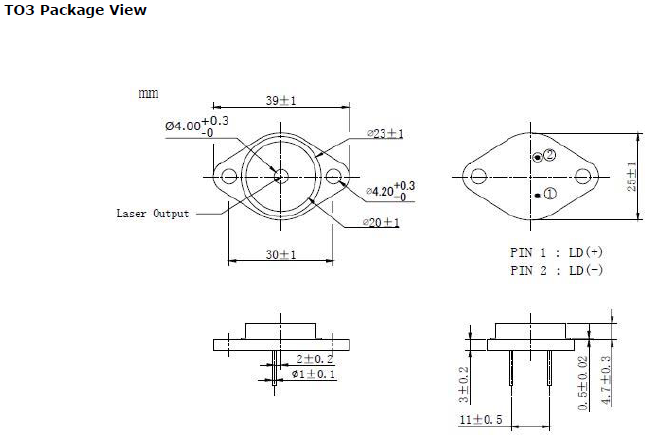

  • Drawing
  • Datasheet
  • Ask For Quotation


  • Part Number
    WSLD-808-005-3
    PARAMETER SYMBOL VALUE UNIT OF MEASURE
    Reverse Voltage Vr 2.0 V
    Operating Temperature Top +10~+30 °C
    Storage Temperature Tstg -20~+80 °C
    Lead Soldering Temperature (10 sec.) Tis 260 °C
    Typical Specification (@25C°)
    Min.
    Typical Value
    Max.
    Optical Parameters


    Center Wavelength

    808nm+/-10nm

    Output Power
    		 ---- 5.0W ----
    Spectral Width(FWHM) ---- 2.0nm ----
    Wavelength Temp. Coefficient 0.3nm/°C
    Laser Type FP
    Beam Type Multimode
    Emitter Size 200um x 1um
    Beam Divergence (FWHM) ---- 35°⊥x8°∥ ----
    Slope Efficiency ---- 1.2W/A ----
    Electrical Parameters Threshold Current ---- 0.7A ----
    Operating Current ---- 5.2A 5.5A
    Operating Voltage ---- 1.8V 2.2V
    Photodiode Parameters Photodiode Without
    PD Current ---- ---- ----
    PD Reverse Voltage (Max.) ----
    Other Parameters Package TO3
    Recommended
    Operating Temp.    		 25°C

    Other

    		 ----
