WSLD-785-003-H
785nm～790nm Laser Diode| High Power LD| 3W Power| Hermetic Package
    ●  Part Number：WSLD-785-003-H
    ●  Wavelength：785nm
    ●  Output Power：3W

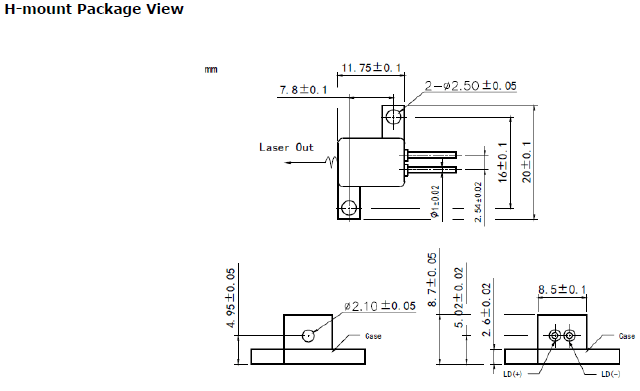

    ●  Package：H-mount
    ●  Without PD & FAC







  • Specification
  • Drawing
  • Datasheet
  • Ask For Quotation


  • Part Number
    WSLD-785-003-H
    PARAMETER SYMBOL VALUE UNIT OF MEASURE
    Reverse Voltage Vr 2.0 V
    Operating Temperature Top +10~+30 °C
    Storage Temperature Tstg -20~+80 °C
    Lead Soldering Temperature (10 sec.) Tis 260 °C
    Typical Specification (@25C°)
    Min.
    Typical Value
    Max.
    Optical Parameters


    Center Wavelength

    785nm+/-10nm

    Output Power
    		 ---- 3.0W ----
    Spectral Width(FWHM) ---- 2.0nm ----
    Wavelength Temp. Coefficient 0.3nm/°C
    Laser Type FP
    Beam Type Multimode
    Emitter Size 200um x 1um
    Beam Divergence (FWHM) ---- 35°⊥x8°∥ ----
    Slope Efficiency ---- 1.0W/A ----
    Electrical Parameters Threshold Current ---- 0.6A ----
    Operating Current ---- 3.6A ----
    Operating Voltage ---- 1.9V ----
    Photodiode Parameters Photodiode Without PD
    PD Current ---- ---- ----
    PD Reverse Voltage (Max.) ----
    Other Parameters Package H-mount
    Recommended
    Operating Temp.    		 25°C

    Other

    		 ----
