WSLD-520-001-2
515nm~520nm 1W Laser Diode| High Power LD 9mm Package |Green Laser Diode
    ●  Part Number：WSLD-520-001-2
    ●  Wavelength：520nm
    ●  Output Power：1W
    ●  Package：TO5 (9mm)
    ●  Without PD







  • Specification

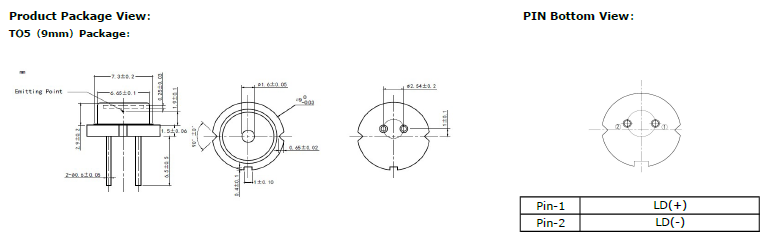

  • Drawing
  • Datasheet
  • Ask For Quotation


  • Part Number
    WSLD-520-001-2
    PARAMETER SYMBOL VALUE UNIT OF MEASURE
    Reverse Voltage Vr 2.0 V
    Operating Temperature Top 0 ~ +60 °C
    Storage Temperature Tstg -40 ~ +85 °C
    Lead Soldering Temperature (10 sec.) Tis 260 °C
    Typical Specification (@25C°)
    Min.
    Typical Value
    Max.
    Optical Parameters


    Center Wavelength

    520nm±15nm

    Output Power
    		 ---- 1W ----
    Spectral Width(FWHM) ---- 2.0nm ----
    Wavelength Temp. Coefficient 0.05nm/°C
    Laser Type FP
    Beam Type Multimode
    Emitter Size 20umx1um
    Beam Divergence (FWHM) ---- 45°⊥x12°∥ ----
    Slope Efficiency ---- 0.7W/A ----
    Electrical Parameters Threshold Current ---- 0.2A 0.5A
    Operating Current ---- 1.6A 1.8A
    Operating Voltage ---- 5.0V 6.0V
    Photodiode Parameters Photodiode Without PD
    PD Current ---- ---- ----
    PD Reverse Voltage (Max.) ----
    Other Parameters Package TO5（9mm)）
    Recommended
    Operating Temp.    		 25°C

    Other

    		 ----
