WSLD-445-4500m-K
445nm 4.5W Collimated Laser Diode High Power LD | TO5 Package| Blue Diode Laser
    ●  Part Number：WSLD-445-4500m-K
    ●  Wavelength：450nm
    ●  Output Power：4.5W
    ●  Package：TO5 (9mm)
    ●  Without PD







  • Specification

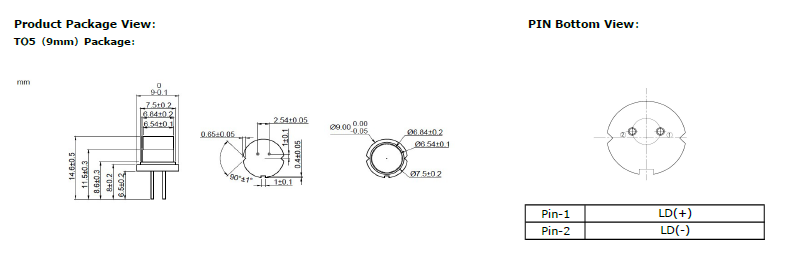

  • Drawing
  • Datasheet
  • Ask For Quotation


  • Part Number
    WSLD-445-4500m-K
    PARAMETER SYMBOL VALUE UNIT OF MEASURE
    Reverse Voltage Vr 2.0 V
    Operating Temperature Top 0 ~ +60 °C
    Storage Temperature Tstg -40 ~ +85 °C
    Lead Soldering Temperature (10 sec.) Tis 260 °C
    Typical Specification (@25C°)
    Min.
    Typical Value
    Max.
    Optical Parameters


    Center Wavelength

    450nm±15nm

    Output Power
    		 ---- 4.5W ----
    Spectral Width(FWHM) ---- 2.0nm ----
    Wavelength Temp. Coefficient 0.05nm/°C
    Laser Type FP
    Beam Type Multimode
    Emitter Size 80umx1um
    Beam Divergence (FWHM) ---- 0.8°⊥x0.1°∥ ----
    Slope Efficiency ---- 1.7W/A ----
    Electrical Parameters Threshold Current ---- 0.3A 0.6A
    Operating Current ---- 3.0A 3.3A
    Operating Voltage ---- 4.5V 5.5V
    Photodiode Parameters Photodiode Without PD
    PD Current ---- ---- ----
    PD Reverse Voltage (Max.) ----
    Other Parameters Package TO5（9mm）
    Recommended
    Operating Temp.    		 25°C

    Other

    		 ----
