WSLD-980-150m-2-PD
980nm 150mW Single Mode Laser Diode
●  Wavelength: 980nm
●  Output Power: 150mW
●  TO5 Package
●  Built-in PD
●  Single transverse mode
●  Fabry Perot laser







  • Specification

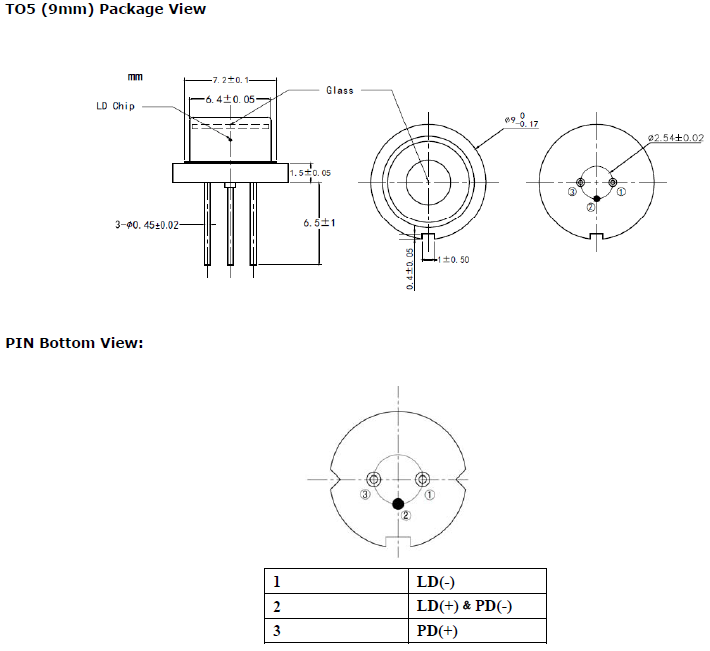

  • Drawing
  • Datasheet
  • Ask For Quotation


  • Specifications

           WSLD-980-150m-2-PD



    Min

    Type

    Max

    Center Wavelength@25℃

    970nm

    980nm

    990nm

    Spectral Width(FWHM)

    ----

    		 1nm 2.0nm

    Output Power



    150mW



    Emitter



    		 3um*1.5um

    Beam Divergence (FWHM)

    32°┴ x 8°//

    38°┴ x 10°//

    43°┴ x 12°//

    Monitor Current

    ----

    		 0.65uA 1.5uA

    PD Reverse Voltage

    ----

    		 ---- ----

    PD Forward Current

    ----

    		 ---- ----

    Slope Efficiency

    0.8mW/mA

    0.9mW/mA

    ----

    Threshold Current (Typ.)

    25mA

    30mA

    50mA

    Operating Current (Typ.)

    ----

    190mA

    210mA

    Operating Voltage

    ---

    1.6V

    2.0V

    Package Style

    TO5 (9mm)
