WSLD-785-100m-1-PD
785nm SM Infrared Laser Diodes |Single Mode LD With Photodiode|100mW Output Power
    ●  Part Number：WSLD-785-100m-1-PD
    ●  Wavelength：758nm
    ●  Output Power：100mW
    ●  Package：TO18 (5.6mm)
    ●  Built-in PD






  • Specification

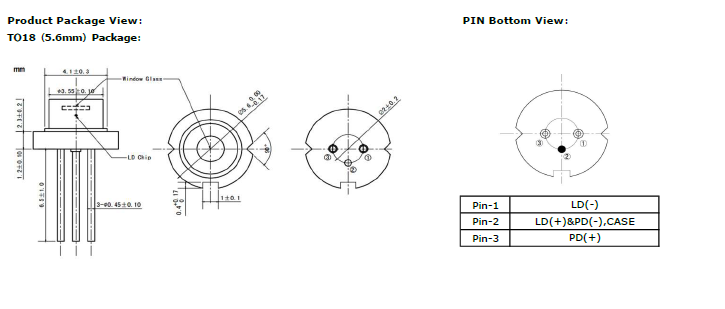

  • Drawing
  • Datasheet
  • Ask For Quotation


  • Part Number
    WSLD-785-100m-1-PD
    PARAMETER SYMBOL VALUE UNIT OF MEASURE
    Reverse Voltage Vr 2.0 V
    Operating Temperature Top -10~+60 °C
    Storage Temperature Tstg -40 ~ +85 °C
    Lead Soldering Temperature (10 sec.) Tis 260 °C
    Typical Specification (@25C°)
    Min.
    Typical Value
    Max.
    Optical Specifications


    Center Wavelength

    785nm+/-10nm

    Output Power
    		 ---- 100mW ----
    Spectral Width(FWHM) ---- 2.0nm ----
    Wavelength Temp. Coefficient 0.3nm/°C
    Laser Type FP
    Beam Type Single Mode
    Beam Divergence(FWHM) 15°⊥x8°∥ 17°⊥x9°∥ 19°⊥x10°∥
    Slope Efficiency ---- 1.1mW/mA ----
    Electrical Specifications Threshold Current ---- 35mA ----
    Operating Current ---- 125mA ----
    Operating Voltage ---- 2.3V ----
    Photodiode Specifications Photodiode Built-in
    PD Current ---- 0.3mA ----
    PD Reverse Voltage (Max.) 30V
    Other Specifications Package Style TO18 （5.6mm）
    Recommended
    Operating Temp.    		 25°C

    Other

    		 ----
