WSLD-635-015m-1-PD
635nm 15mW Single Mode SM Laser Diode | With Photodiode
    ●  Part Number：WSLD-635-015m-1-PD
    ●  Wavelength：638nm
    ●  Output Power：15mW
    ●  Package：TO18 (5.6mm)
    ●  Built-in PD






  • Specification

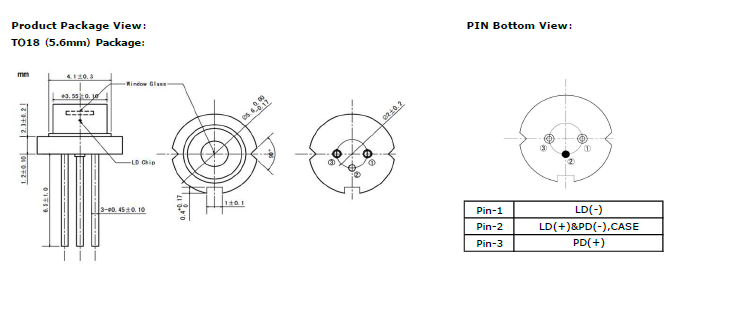

  • Drawing
  • Datasheet
  • Ask For Quotation


  • Part Number
    WSLD-635-015m-1-PD
    PARAMETER SYMBOL VALUE UNIT OF MEASURE
    Reverse Voltage Vr 2.0 V
    Operating Temperature Top -10~+50 °C
    Storage Temperature Tstg -40 ~ +85 °C
    Lead Soldering Temperature (10 sec.) Tis 260 °C
    Typical Specification (@25C°)
    Min.
    Typical Value
    Max.
    Optical Specifications


    Center Wavelength

    638nm+/-10nm

    Output Power
    		 ---- 15mW ----
    Spectral Width(FWHM) ---- 2.0nm ----
    Wavelength Temp. Coefficient 0.2nm/°C
    Laser Type FP
    Beam Type Single Mode
    Beam Divergence(FWHM) 30°⊥x6°∥ 33°⊥x8°∥ 40°⊥x10°∥
    Slope Efficiency ---- 0.5mW/mA ----
    Electrical Specifications Threshold Current ---- 35mA 40mA
    Operating Current ---- 70mA 80mA
    Operating Voltage ---- 2.3V 2.6V
    Photodiode Specifications Photodiode Built-in
    PD Current 0.1mA 0.2mA 0.5mA
    PD Reverse Voltage (Max.) 30V
    Other Specifications Package Style TO18 （5.6mm）
    Recommended
    Operating Temp.    		 25°C

    Other

    		 ----
