WSLD-635-180m-1
635nm 180mW Single Mode Laser Diode with TO18 Package| High Power Red LD
    ●  Part Number：WSLD-635-180m-1
    ●  Wavelength：638nm
    ●  Output Power：180mW
    ●  Package：TO18 (5.6mm)
    ●  Without PD







  • Specification

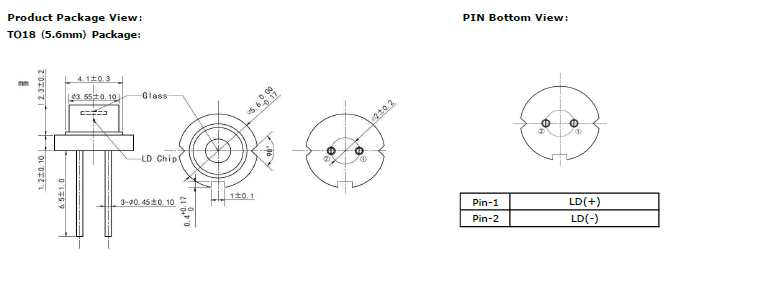

  • Drawing
  • Datasheet
  • Ask For Quotation


  • Part Number
    WSLD-635-180m-1
    PARAMETER SYMBOL VALUE UNIT OF MEASURE
    Reverse Voltage Vr 2.0 V
    Operating Temperature Top -10~+60 °C
    Storage Temperature Tstg -40 ~ +85 °C
    Lead Soldering Temperature (10 sec.) Tis 260 °C
    Typical Specification (@25C°)
    Min.
    Typical Value
    Max.
    Optical Specifications


    Center Wavelength

    638nm+/-10nm

    Output Power
    		 ---- 180mW ----
    Spectral Width(FWHM) ---- 2.0nm ----
    Wavelength Temp. Coefficient 0.2nm/°C
    Laser Type FP
    Beam Type Single Mode
    Beam Divergence(FWHM) 10°⊥x4°∥ 15°⊥x10°∥ 24°⊥x13°∥
    Slope Efficiency ---- 1.1mW/mA ----
    Electrical Specifications Threshold Current ---- 70mA 100mA
    Operating Current ---- 220mA 240mA
    Operating Voltage ---- 2.8V 3.5V
    Photodiode Specifications Photodiode Without
    PD Current ---- ---- ----
    PD Reverse Voltage (Max.) ----
    Other Specifications Package Style TO18 （5.6mm）
    Recommended
    Operating Temp.    		 25°C

    Other

    		 ----
