WSLD-445-050m-1(3.8mm)
445nm~450nm 50mw Laser Diode| Single mode LD| Blue Laser diode
    ●  Part Number：WSLD-445-050m-1 (3.8mm)
    ●  Wavelength：445nm
    ●  Output Power：50mW
    ●  Package：TO38 (3.8mm)
    ●  Without PD







  • Specification

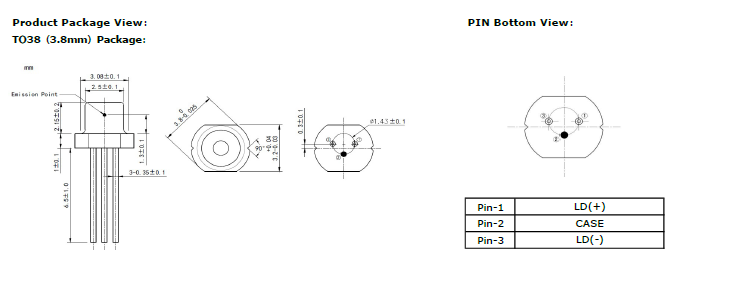

  • Drawing
  • Datasheet
  • Ask For Quotation


  • Part Number
    WSLD-445-050m-1(3.8mm)
    PARAMETER SYMBOL VALUE UNIT OF MEASURE
    Reverse Voltage Vr 2.0 V
    Operating Temperature Top +10~+70 °C
    Storage Temperature Tstg -40 ~ +85 °C
    Lead Soldering Temperature (10 sec.) Tis 260 °C
    Typical Specification (@25C°)
    Min.
    Typical Value
    Max.
    Optical Specifications


    Center Wavelength

    450nm+/-10nm

    Output Power
    		 ---- 50mW ----
    Spectral Width(FWHM) ---- 2.0nm ----
    Wavelength Temp. Coefficient 0.05nm/°C
    Laser Type FP
    Beam Type Single Mode
    Beam Divergence(FWHM) 15°⊥x4°∥ 21°⊥x7°∥ 25°⊥x15°∥
    Slope Efficiency 0.85mW/mA 0.9mW/mA 1.2mW/mA
    Electrical Specifications Threshold Current ---- 30mA 60mA
    Operating Current ---- 100mA 120mA
    Operating Voltage ---- 5.5V 6.5V
    Photodiode Specifications Photodiode Without
    PD Current ---- ---- ----
    PD Reverse Voltage (Max.) ----
    Other Specifications Package Style TO38（3.8mm）
    Recommended
    Operating Temp.    		 25°C

    Other

    		 ----
