WSLD-405-120m-1
    ●  Part Number：WSLD-405-120m-1
    ●  Wavelength：405nm
    ●  Output Power：120mW
    ●  Package：TO18 (5.6mm)







  • Specification

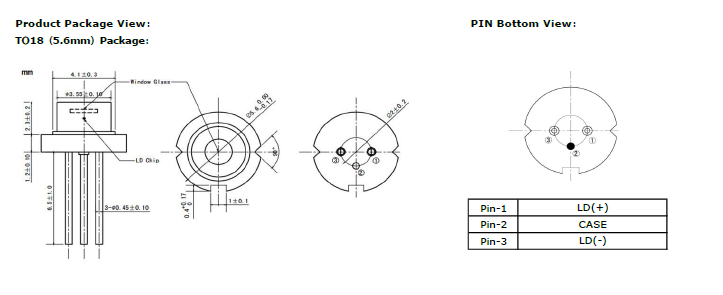

  • Drawing
  • Datasheet
  • Ask For Quotation


  • Part Number
    WSLD-405-120m-1
    PARAMETER SYMBOL VALUE UNIT OF MEASURE
    Reverse Voltage Vr 2.0 V
    Operating Temperature Top -10~+70 °C
    Storage Temperature Tstg -40 ~ +85 °C
    Lead Soldering Temperature (10 sec.) Tis 260 °C
    Typical Specification (@25C°)
    Min.
    Typical Value
    Max.
    Optical Specifications


    Center Wavelength

    405nm±10nm

    Output Power
    		 ---- 120mW ----
    Spectral Width(FWHM) ---- 2.0nm ----
    Wavelength Temp. Coefficient 0.05nm/°C
    Laser Type FP
    Beam Type Single Mode
    Beam Divergence(FWHM) 15°⊥x5°∥ 19°⊥x9°∥ 24°⊥x12°∥
    Slope Efficiency ---- 1.7mW/mA ----
    Electrical Specifications Threshold Current ---- 40mA 70mA
    Operating Current ---- 110mA 130mA
    Operating Voltage ---- 5.0V 6.0V
    Photodiode Specifications Photodiode Without
    PD Current ---- ---- ----
    PD Reverse Voltage (Max.) 30V
    Other Specifications Package Style TO18 （5.6mm）
    Recommended
    Operating Temp.    		 25°C

    Other

    		 ----
