WSLD-405-200m-1 (3.8mm)
405nm SM LD| 200mW Power|3.8mm Package
    ●  Part Number：WSLD-405-200m-1(3.8mm)
    ●  Wavelength：405nm
    ●  Output Power：200mW
    ●  Package：TO38 (3.8mm)
    ●  Without PD








  • Specification

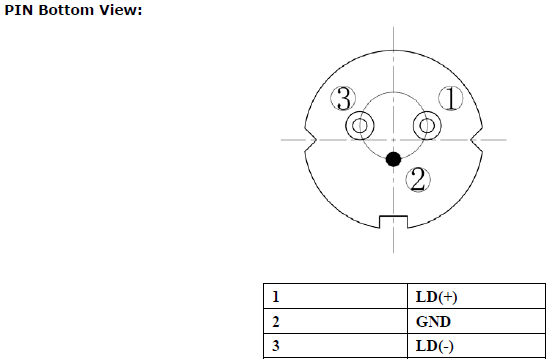

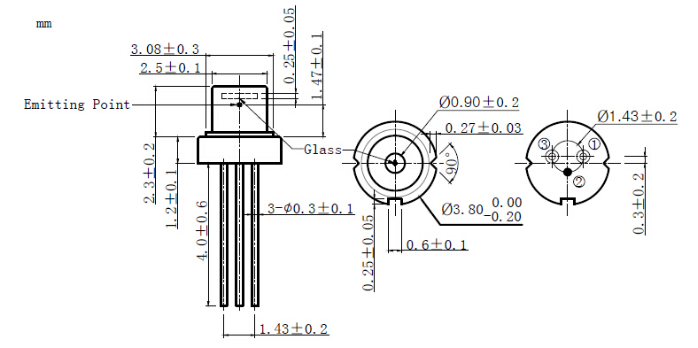

  • Drawing
  • Datasheet
  • Ask For Quotation


  • Part Number
    WSLD-405-200m-1(3.8mm)
    PARAMETER SYMBOL VALUE UNIT OF MEASURE
    Reverse Voltage Vr 2.0 V
    Operating Temperature Top -10~+70 °C
    Storage Temperature Tstg -40 ~ +85 °C
    Lead Soldering Temperature (10 sec.) Tis 260 °C
    Typical Specification (@25C°)
    Min.
    Typical Value
    Max.
    Optical Specifications


    Center Wavelength

    405nm±10nm

    Output Power
    		 ---- 200mW ----
    Spectral Width(FWHM) ---- 2.0nm ----
    Wavelength Temp. Coefficient 0.05nm/°C
    Laser Type FP
    Beam Type Single Mode
    Beam Divergence(FWHM) 15°⊥x7°∥ 20°⊥x9°∥ 24°⊥x12°∥
    Slope Efficiency 1.0mW/mA 1.5mW/mA 1.9mW/mA
    Electrical Specifications Threshold Current ---- 35mA 60mA
    Operating Current ---- 160mA 180mA
    Operating Voltage ---- 5.2V 5.8V
    Photodiode Specifications Photodiode Without
    PD Current ---- ---- ----
    PD Reverse Voltage (Max.) ----
    Other Specifications Package Style TO38（3.8mm）
    Recommended
    Operating Temp.    		 25°C

    Other

    		 ----
