WSLR-405-100m-M
405nm 100mW fiber detachable violet laser diode module,receptacle package.
Suit for 20um,30um,40um,50um,60um,105um,200um UV Fiber.






  • Specification

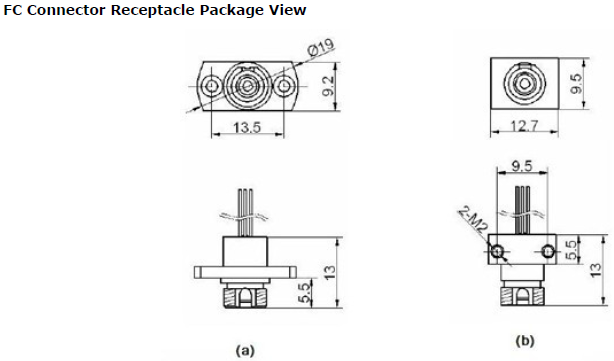

  • Drawing
  • Datasheet
  • Ask For Quotation


  •

    Specifications

    WSLP-405-100m-M



    Min

    Type

    Max

    Center Wavelength@25℃

    400nm

    405nm

    410nm

     Spectral Width(FWHM)

    ---

    2.0nm



    Optical Fiber Output Power

    ---

    		 100mW

    Fiber Specification

    50um 60um Optional
    0.12 / 0.22

    Recommended Operating Temperature

    25°C

    Ferrule Type

    FC

    Other Customized Ferrule Type

    SC or SMA905

    Threshold Current(Typ.)



    		 40mA 50mA

    Operating Current(Typ.)

    ----

    140mA

    160mA

    Operating Voltage



    		 5.0V 5.5V
    Package Style Receptacle
