WSLD-525-080m-1-PD
525nm～530nm 80mW Laser Diode| Single mode Green LD | With Photodiode
    ●  Part Number：WSLD-525-080m-1-PD
    ●  Wavelength：525nm
    ●  Output Power：80mW
    ●  Package：TO18 (5.6mm)
    ●  With PD






  • Specification

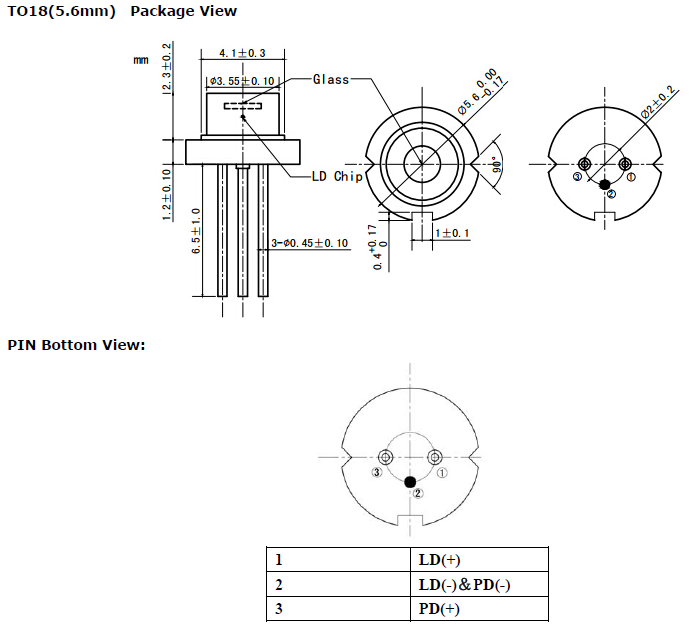

  • Drawing
  • Datasheet
  • Ask For Quotation


  • Specifications

          WSLD-525-080m-1-PD



    Min

    Type

    Max

    Center Wavelength@25℃

    +/-3nm

    525nm

    +/-5nm

    Spectral Width (FWHM)

    2.0nm

    Output Power

    ----

    80mW

    ---
    Recommended Operating Temperature
    25°C


    LD Mode

    Single Mode

    Beam Divergence (FWHM)

    5°┴ x 15°//

    8°┴ x 21°//

    12°┴ x 25°//
    Monitor Current --- 0.1mA ---

    Threshold Current (Typ.)

    ----

    50mA

    80mA

    Operating Current (Typ.)

    ----

    210mA

    240mA

    Operating Voltage

    ----

    7.5V

    8.0V

    Package Style

    TO18 (5.6mm)
